| Name: | Steel rim Clip on wheel balance weights Steel rim clip on wheel balance weights with grey coated |
| Code： | 2002 |
| Type: | 5g,10g,15g,20g,25g,30g,35g,40g,45g,50g,55g,60g |
| Surface: | Grey powder coating |
Steel rim clip on wheel balance weights with grey coated
- Clip size: 2.0+-0.2 fit for the steel rim
- Specification:5g,10g,15g,20g,25g,30g,35g,40g,45g,50g,55g,60g
- Used for most vehicles equipped with steel rim wheels.
- Powder-coated surface helps eliminate corrosion and staining of expensive wheels
- Clip on firmly and not easy to fall off with Hardened spring steel which are easier to Install and designed for correct fit.
- Produce as per OEM Standards
- 100% lead-free without impact on the environment
- We offer OEM designing for box and carton packing: MOQ,20 pallets

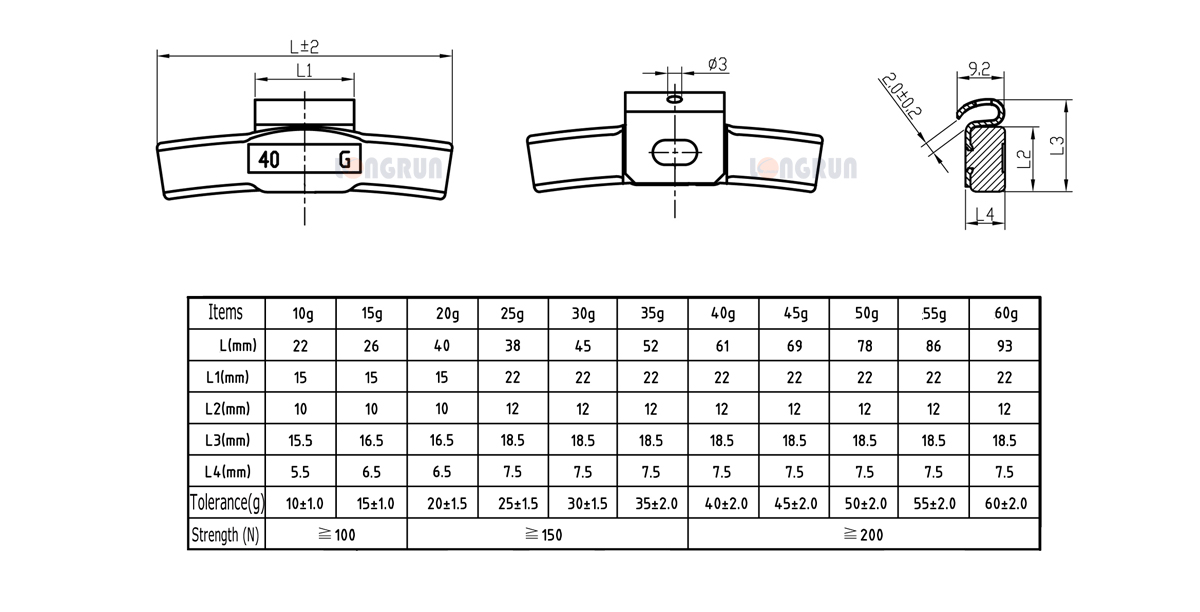

Detail drawing
Packing details
| SPEC. | PCS/BX | BX/CTN | Box Size(mm) | CTN Size(mm) |
| 5g | 100 | 20 | 115x75x60 | 420x250x130 |
| 10g | 100 | 12 | 135x115x70 | 420x250x150 |
| 15g | 100 | 12 | 135x115x70 | 420x250x150 |
| 20g | 100 | 8 | 195x115x60 | 420x250x130 |
| 25g | 100 | 8 | 195x115x60 | 420x250x130 |
| 30g | 100 | 6 | 225x130x70 | 420x250x150 |
| 35g | 50 | 12 | 135x115x70 | 420x250x150 |
| 40g | 50 | 8 | 195x115x60 | 420x250x130 |
| 45g | 50 | 8 | 195x115x60 | 420x250x130 |
| 50g | 50 | 8 | 195x115x60 | 420x250x130 |
| 55g | 50 | 8 | 195x115x60 | 420x250x130 |
| 60g | 50 | 6 | 225x130x70 | 420x250x150 |
Shipping details
| Lead time | 5-15 days |
| Loading port: | Xingang port |
| Qingdao | |
| Ningbo | |
| Shanghai | |
| Shipping method: | By sea For LCL and Full container terms |
| By air For LCL terms | |
| By Truck For Inland transportation |
Production flow
How to use it?
1.Choose the correct clip on wheel weight for the wheel rim. Check that the clip on wheel weight is correct by balancer machine
2. Put the wheel weight in the correct place. Before striking with wheel weight plier, make sure that the top and the bottom of the clip are touching the rim .
3. After the wheel weight is properly aligned, knock the clip with a wheel weight plier. Please Note: Striking the weight body could result in clip retention failure or weight movement
4. After the wheel weight installed , to check make sure that it is secured properly.
Clip Profile and Fitment Information
| Drawing | Type | Application |
 |
P | The most common weight for steel wheels. |
 |
AW | Fits Buick, Cadillac, Chevrolet, Chrysler, Dodge, Eagle, Geo, Isuzu, Oldsmobile, Plymouth and Pontiac. |
 |
MC | Fits Buick, Cadillac, Chevrolet, Chrysler, Dodge, Eagle, Ford, Lincoln, Mazda, Mercury, Mitsubishi, Oldsmobile, Plymouth, Pontiac and Saturn. |
 |
IAW | Fits AMC, Audi, BMW, Chrysler, Dodge, Eagle, Geo, Hyundai, Merkur, Mitsubishi, Nissan/ Datsun, Plymouth, Pontiac, Saab, Sterling, Subaru, Suzuki, Toyota, Volkswagen and Volvo |
 |
EN | Fits Acura, Audi, Ford Trucks, Honda, Mercedes and Volkswagen |
 |
FN | Fits Acura, Geo, Honda, Infiniti, Lexus, Nissan and Toyota |
 |
T | Fits Chevrolet, Ford, GMC and Lincoln |
Summary
Steel clip on wheel balance weights with 2.0 clip size is used for The most common weight for steel wheels. An out-of-balance tire can adversely affect ride quality and shorten the life of your tires, bearings, shocks and other suspension components. Balanced tires help save fuel, preserve tire life, and improve safety and comfort.
FAQ
Q1: How to control the clip on wheel weights quality?
Each order in every process would be inspected by professional work carefully, there is detailed inspection recode
Q2: Can you provide OEM/ODM service for the steel rim with 2.2 size wheel weights?
Yes, We work on customized orders. Which means size, material, quantity, design, packing solution, etc., will depend on your requests, and your logo will be costumed on your products.
Q3: Shipping Method and Shipping Time?
1) Shipping time is about one month depends on country and area.
2) By sea port to port: about 20-35 days
3) Agent appointed by clients
Q4. What is your payment terms for wheel weights?
We accept T/T and L/C both ,if the order value less than 10000$,we would ask for 100% payment; 30% deposit and 70% before shipping for big value bill.
Q5. What is the warranty of your products?
We offer the warranty of 12 months for all products.
