| Name: | IAW Clip on wheel balance weights with darcromet |
| Code： | 2001 |
| Type: | 5g,10gg,15g,20g,25g,30g,35g,40g,45g,50g,55g,60g |
| Surface: | Darcromet coating |
IAW wheel balance weights darcromet coated
1.Clip size: 4.5+-0.2 fit for the steel rim
2.Specific:5gr,10gr,15g,20g,25g,30g,35g,40g,45g,50g,55g,60gr
3.Used for most vehicles equipped with alloy wheels.
4.Darcromet coated surface for clip on wheel weights
5.Clip on firmly and not easy to fall off with Hardened spring steel, easy to Install and designed for correct fit.
6.Manufacture with quality to meet OEM Standards which look as OEM weights
7.100% lead-free which has less impact on the environment
8.OEM designing for box and carton packing: MOQ,20 pallets

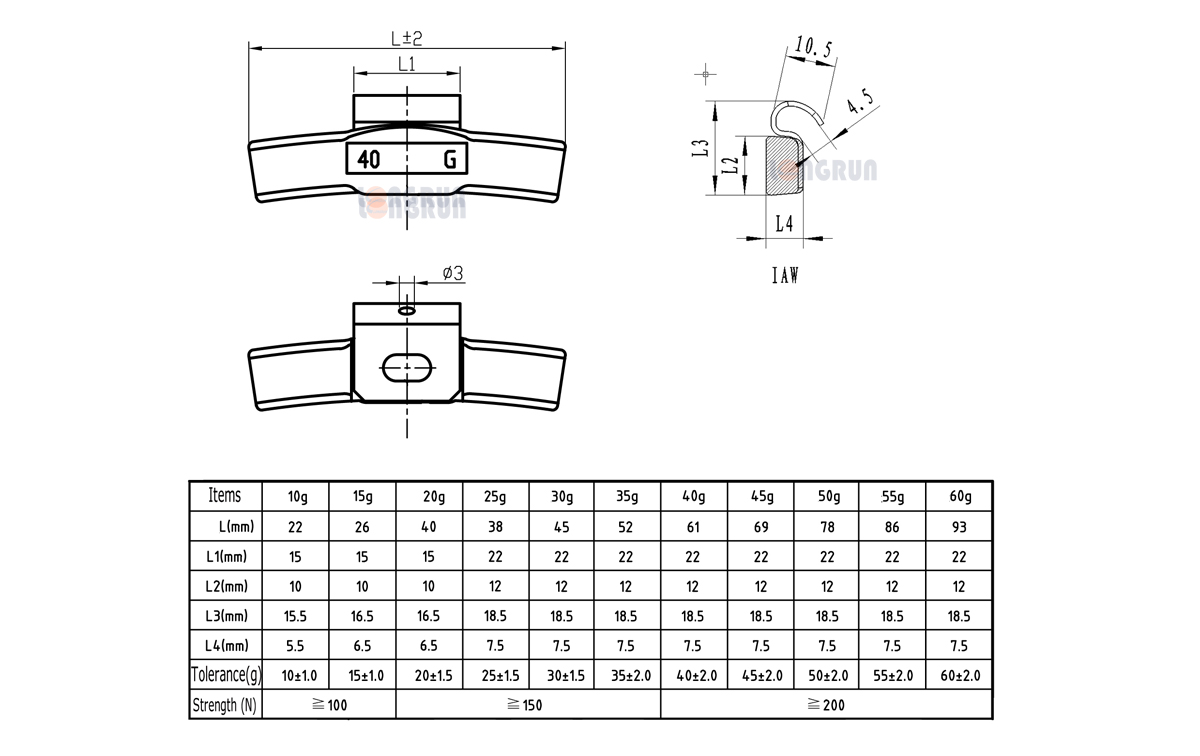

Detail drawing
Packing details
| SPEC. | PCS/BX | BX/CTN | Box Size(mm) | CTN Size(mm) |
| 5g | 100 | 20 | 115x75x60 | 420x250x130 |
| 10g | 100 | 12 | 135x115x70 | 420x250x150 |
| 15g | 100 | 12 | 135x115x70 | 420x250x150 |
| 20g | 100 | 8 | 195x115x60 | 420x250x130 |
| 25g | 100 | 8 | 195x115x60 | 420x250x130 |
| 30g | 100 | 6 | 225x130x70 | 420x250x150 |
| 35g | 50 | 12 | 135x115x70 | 420x250x150 |
| 40g | 50 | 8 | 195x115x60 | 420x250x130 |
| 45g | 50 | 8 | 195x115x60 | 420x250x130 |
| 50g | 50 | 8 | 195x115x60 | 420x250x130 |
| 55g | 50 | 8 | 195x115x60 | 420x250x130 |
| 60g | 50 | 6 | 225x130x70 | 420x250x150 |
Shipping details
| Lead time | 5-15 days |
| Loading port: | Xingang port |
| Qingdao | |
| Ningbo | |
| Shanghai | |
| Shipping method: | By sea For LCL and Full container terms |
| By air For LCL terms | |
| By Truck For Inland transportation |
Production flow
How to use it?
1.Choose the correct IAW clip on wheel weight for the wheel rim. Check that the weight is correct by balancer machine
2. Put the iwa wheel weight in the correct place. Before striking with wheel weight plier, make sure that the top and the bottom of the clip are touching the rim flange. The body of the weight should not be touching the rim!
3. After the wheel weight is properly aligned, knock the clip with a wheel weight plier. Please Note: Striking the weight body could result in clip retention failure or weight movement
4. After the weight installed , to check make sure that it is secured properly.
Clip Profile and Fitment Information
| Drawing | Type | Application |
 |
P | The most common weight for steel wheels. |
 |
AW | Fits Buick, Cadillac, Chevrolet, Chrysler, Dodge, Eagle, Geo, Isuzu, Oldsmobile, Plymouth and Pontiac. |
 |
MC | Fits Buick, Cadillac, Chevrolet, Chrysler, Dodge, Eagle, Ford, Lincoln, Mazda, Mercury, Mitsubishi, Oldsmobile, Plymouth, Pontiac and Saturn. |
 |
IAW | Fits AMC, Audi, BMW, Chrysler, Dodge, Eagle, Geo, Hyundai, Merkur, Mitsubishi, Nissan/ Datsun, Plymouth, Pontiac, Saab, Sterling, Subaru, Suzuki, Toyota, Volkswagen and Volvo |
 |
EN | Fits Acura, Audi, Ford Trucks, Honda, Mercedes and Volkswagen |
 |
FN | Fits Acura, Geo, Honda, Infiniti, Lexus, Nissan and Toyota |
 |
T | Fits Chevrolet, Ford, GMC and Lincoln |
Summary
Clip on wheel balance weights is used to balance a wheel and tire assembly. An out-of-balance tire can adversely affect ride quality and shorten the life of your tires, bearings, shocks and other suspension components. Balanced tires help save fuel, preserve tire life, and improve safety and comfort.
FAQ
Q1: How do you control the quality of the products?
Each process of each order will be carefully checked by professional staff with detailed inspection records.
Q2: Can you provide OEM/ODM service for us?
Yes, we provide customized service. This means the size, material, quantity, design, packaging scheme, etc., will depend on your requirements, and your logo will be dressed on your products.
Q3: How and when will the products be shipped?
1) The shipping time is about one month, depending on the country and region.
2) By sea port to port: about 20-35 days
3) By the agent appointed by the customer
Q4. What are your payment terms for the products?
We accept both T/T and L/C payment methods. If the order value is less than USD 10,000, we will ask for 100% payment; if it is a large order, 30% deposit and 70% payment before shipment.
Q5. What is the warranty period you provide for your products?
We offer a 12-month warranty on all of our products.
Q6. How can I get a quote?
Please send us a message with your purchase request and we will get back to you within working hours. You can also contact us directly via Trade Manager or any other convenient live chat tool.
