| Name: | FN Clip on wheel balance weights with grey powder coated |
| Code： | 2002 |
| Type: | 5g,10g,15g,20g,25g,30g,35g,40g,45g,50g,55g,60g |
| Surface: | Grey powder coating |
FN clip on wheel balance weights
- Clip size: 6.2+-0.2 fit for the most alloy rim
- Specification:5g,10g,15g,20g,25g,30g,35g,40g,45g,50g,55g,60g
- Used for most Japanese vehicles equipped with alloy rim wheels.
- Powder-coated surface helps eliminate corrosion and staining of expensive wheels
- Firmly and uneasy to fall off with Hardened spring steel clips, easy to Install.
- Manufacture with quality request to meet OEM Standards
- 100% lead-free without impact on the environment
- Reduces inventory cost by eliminating traditional wheel weight inventories and requiring less floor space
- Low-profile design for increased clearance of close-proximity calipers or brake components
Packing details
| SPEC. | PCS/BX | BX/CTN | Box Size(mm) | CTN Size(mm) |
| 5g | 100 | 20 | 115x75x60 | 420x250x130 |
| 10g | 100 | 12 | 135x115x70 | 420x250x150 |
| 15g | 100 | 12 | 135x115x70 | 420x250x150 |
| 20g | 100 | 8 | 195x115x60 | 420x250x130 |
| 25g | 100 | 8 | 195x115x60 | 420x250x130 |
| 30g | 100 | 6 | 225x130x70 | 420x250x150 |
| 35g | 50 | 12 | 135x115x70 | 420x250x150 |
| 40g | 50 | 8 | 195x115x60 | 420x250x130 |
| 45g | 50 | 8 | 195x115x60 | 420x250x130 |
| 50g | 50 | 8 | 195x115x60 | 420x250x130 |
| 55g | 50 | 8 | 195x115x60 | 420x250x130 |
| 60g | 50 | 6 | 225x130x70 | 420x250x150 |

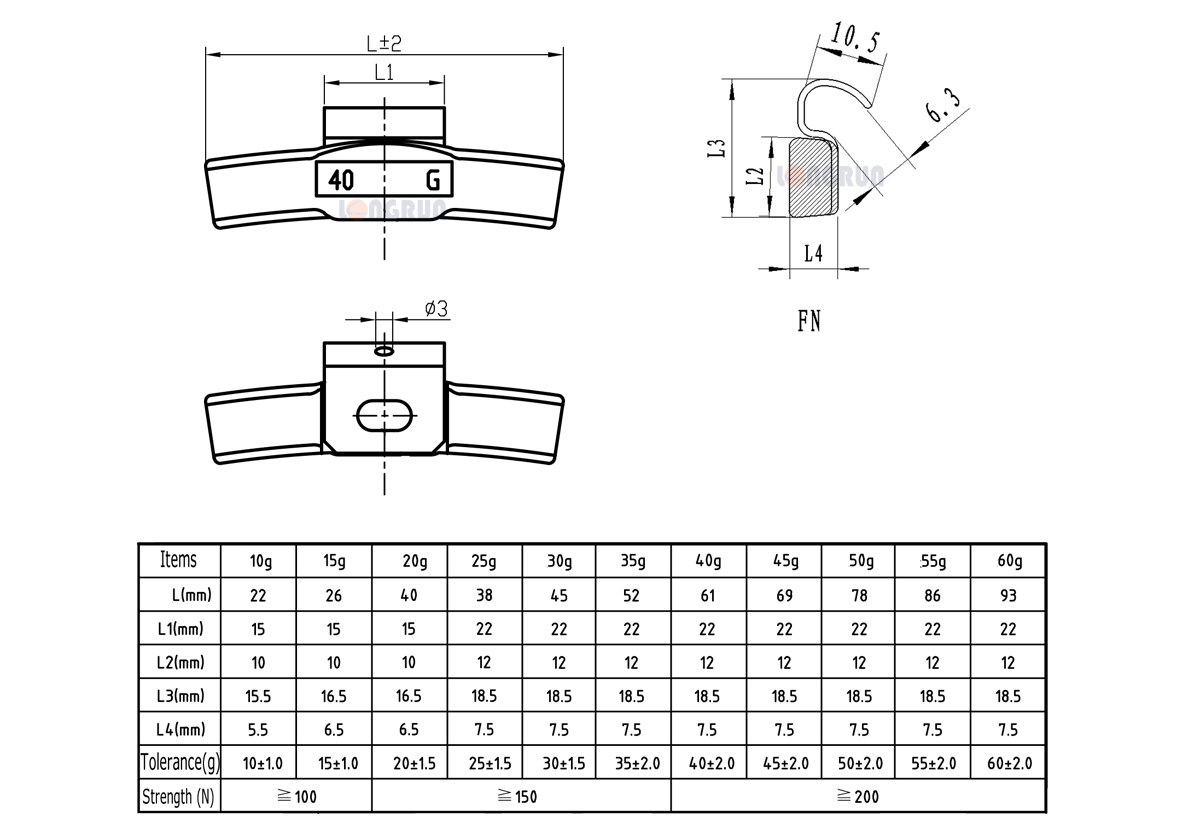

Detail drawing
Shipping details
| Lead time | 5-15 days |
| Loading port: | Xingang port |
| Qingdao | |
| Ningbo | |
| Shanghai | |
| Shipping method: | By sea For LCL and Full container terms |
| By air For LCL terms | |
| By Truck For Inland transportation |

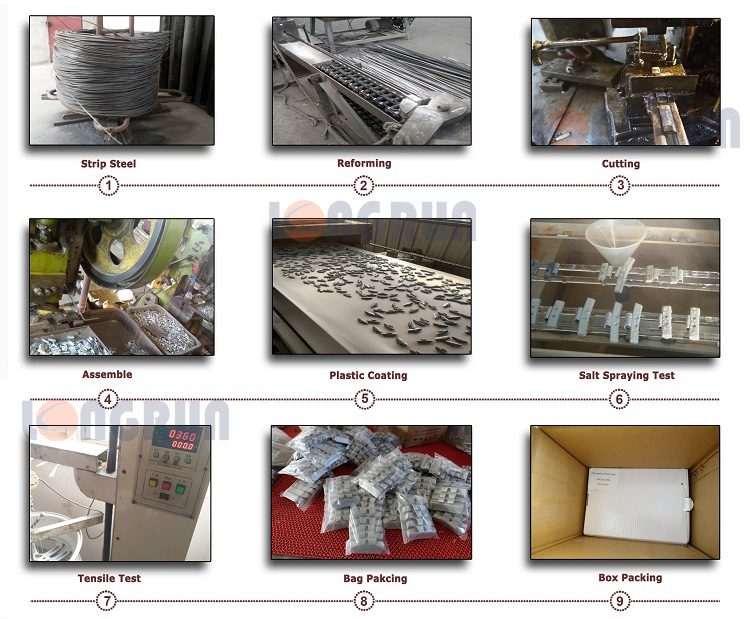

Production flow
How to use it?
1.Select a fn clip on wheel weight for the wheel rim. Check that the weight is correct by balancer machine
2. Put the fn style wheel weight in the correct place. before striking with wheel weight plier, make sure that the top and the bottom of the clip are touching the rim flange. The body of the weight should not be touching the rim!
3. After the wheel weight is properly aligned, knock the clip with wheel weight plier tool. Please Note: Striking the weight body may result in clip retention failure or weight movement
4. Check make sure that it is secured properly After the weight installed.
Clip Profile and Fitment Information
| Drawing | Type | Application |
 |
P | Used for most of steel wheel rims |
 |
AW | Fits for brand such as the Buick, Cadillac, Chevrolet, Chrysler, Dodge, Eagle, Geo, Isuzu, Oldsmobile, Plymouth and Pontiac. |
 |
MC | Fits for Buick, Cadillac, Chevrolet, Chrysler, Dodge, Eagle, Ford, Lincoln, Mitsubishi, Oldsmobile, Plymouth, Pontiac and Saturn, Mazda, Mercury. |
 |
IAW | Fits AMC, Audi, BMW, Chrysler, Dodge, Eagle, Geo, Hyundai, Merkur, Mitsubishi, Nissan/ Datsun, Plymouth, Pontiac, Saab, Sterling, Subaru, Suzuki, Toyota, Volkswagen and Volvo |
 |
EN | Fits Acura, Audi, Ford Trucks, Honda, Mercedes and Volkswagen |
 |
FN | Fits Acura, Geo, Honda, Infiniti, Lexus, Nissan and Toyota |
 |
T | Fits Chevrolet, Ford, GMC and Lincoln |
Summary
FN clip on wheel balance weights are made of steel strips which is mainly for Acura, Geo, Honda, Infiniti, Lexus, Nissan and Toyota brand wheel rim,with an out-of-balance tire can adversely affect ride quality and shorten the life of your tires,moreover, bearings, shocks and other suspension components. Balanced tires help save fuel, preserve tire life, and improve safety and comfort.
FAQ
Q1: How to control the FN knock on wheel weights quality?
Each order in every process would be inspected by professional work carefully, there is detailed inspection recode
Q2: Can you provide OEM/ODM service for the fn wheel weights?
Yes, We work on customized orders. Which means size, material, quantity, design, packing solution, etc., will depend on your requests, and your logo will be costumed on your products.
Q3: Shipping Method and Shipping Time?
1) Shipping time is depends on distance method
2) By sea port to port: about 20-35 days base on full container
3) Agent appointed by clients
Q4. What is your payment terms for wheel weights?
T/T and L/C are acceptable, if the order value less than 10000$,we would ask for 100% payment; 30% deposit and 70% before shipping for full container.
Q7. What is the warranty of your products?
We offer the warranty of 12 months for wheel weight after goods arrival.
